Build a strong, reviewable System Blueprint quickly by working with an authorized external agent. The agent examines evidence in your environment and prepares a structured proposal, while Model Monster validates and synchronizes the supported model. You can then refine the draft with the technical and business context your team knows best.
Understand what assisted modeling does
A System Blueprint gives technical and governance teams a shared, structured view of a system's Components, Resources, and connections. It brings system structure and interactions into one place so teams can review them together and use them in governance work.

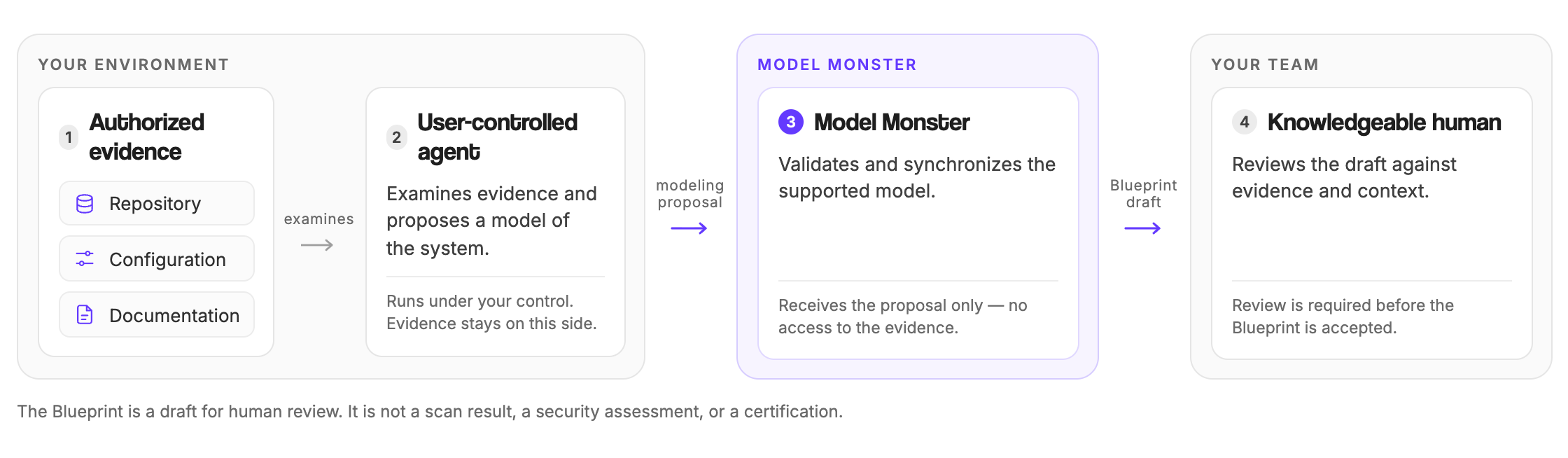

With assisted modeling, an agent you control examines authorized repositories, configuration, documentation, and other evidence to prepare the proposal. Model Monster provides the modeling guidance, validates the proposal, and synchronizes it into a draft System Blueprint. This clear responsibility split keeps evidence access in your environment and gives the resulting model a consistent structure in Model Monster.
For example, an agent can use a service repository and deployment configuration to identify applications, models, data stores, and their likely connections. This can accelerate the first structured model while preserving review by the engineers and governance professionals who understand the system and its operating context.
Prepare access, evidence, and a reviewer
Before you begin, make sure you have:
- Authorized evidence. Use a repository or other source material that you and the agent are permitted to access. Include the evidence needed to understand system boundaries, software, services, data stores, and interactions.
- A connected agent. Connect an agent that supports Model Context Protocol (MCP) to Model Monster with access scoped for the work you intend to perform. If you have not configured the connection yet, follow the Model Monster MCP setup guide to create an API key, configure your agent, and verify the connection.
- A destination. Know the Model Monster organization and team where the System belongs. Select an existing System or confirm that you can create one and synchronize its content.
- A knowledgeable reviewer. Identify someone who can compare the proposal and draft with code, configuration, runtime evidence, and business context. Depending on the system, this may require both a technical owner and a governance reviewer.
Work with the agent in five user steps
-
Connect the agent and make the evidence available. Connect your configured agent to Model Monster, then authorize it to access the repository or other source evidence for this modeling task. Keep the evidence set focused on the System you want to describe.
-
Choose the source and destination. Tell the agent what evidence to examine and which Model Monster organization and team should own the System. If you do not know the available destination, ask the agent to show your options. You do not need to request destination discovery as a separate step when the destination is already clear.
-
Prepare a reviewable Blueprint. Give the System a clear name and ask the agent to examine the evidence and prepare a structured proposal before upload.
-
Refine the proposal. Compare the proposed Components, Resources, connections, and assumptions with what you know about the System. Ask the agent to add missing details, correct inaccuracies, and incorporate the business or runtime context that the evidence alone does not contain. Pay particular attention to system boundaries and to connections whose direction or access operation affects how the System will be understood.
-
Upload and inspect the result. When the proposal reflects the available evidence, authorize the agent to synchronize it. Open the returned System link, then inspect the resulting Draft in both Blueprint and List View.
Know what the agent handles through MCP

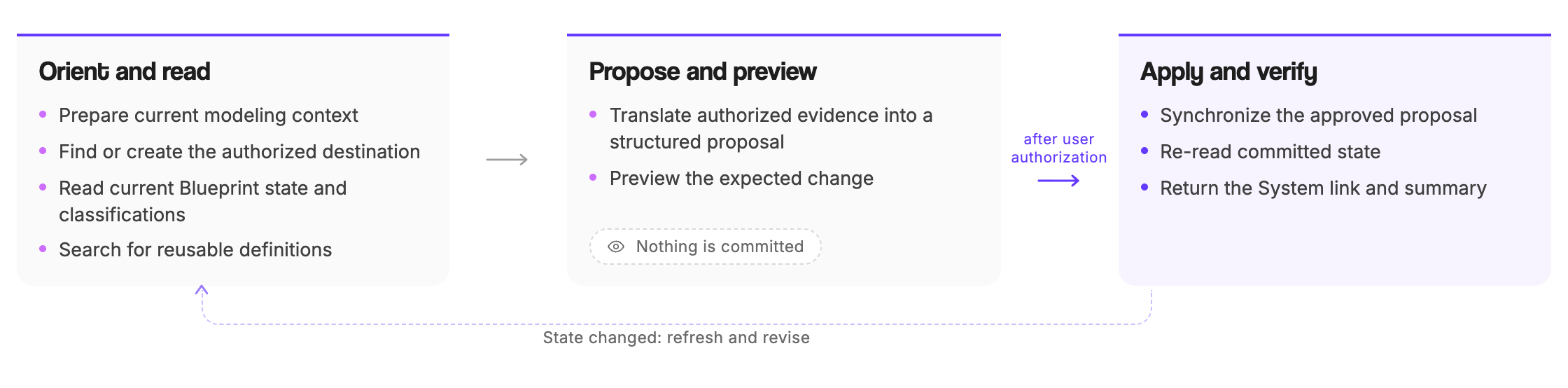

The recommended workflow moves from evidence to a reviewed draft through a read-first, review-before-upload sequence. A capable agent can handle the MCP operations behind the user handoffs without requiring you to prompt for each one individually.
- Orient and read. The agent prepares the current modeling context when the deployment recommends or requires it. It finds or creates the authorized destination, reads the existing System Blueprint and relevant classifications, and looks for reusable Component and Resource definitions.
- Propose and preview. The agent translates the available evidence into a structured proposal. Preview shows the planned changes and checks their structure without changing the System, giving you a clear basis for refinement and approval.
- Apply and verify. After you authorize upload, the agent should synchronize the approved proposal, re-read the committed state, and return the System link with a concise summary. Synchronization applies the accepted proposal to the selected System as a complete change and may add, update, or remove supported modeled items and connections.
If synchronization encounters stale or conflicting System state, the agent refreshes the Blueprint, updates the proposal where needed, and previews the planned changes again as part of its normal work.
Validate the resulting draft
After synchronization, the agent should re-read the committed state and return the System link with a concise summary. Open the resulting Draft in Blueprint and List View to prepare it for your next governance task. Use the visual Blueprint to examine overall structure and direction, and use List View to compare individual entries and connections.
Bring the people who know the architecture and use case into this review. Technical owners can confirm system boundaries, identities, connections, and access patterns, while business and governance reviewers can add purpose, operational context, and the facts that shape later governance decisions.
Review the draft against authoritative evidence and ask:
| Review area | Questions to answer |
|---|---|
| Boundary and coverage | Does the draft include the relevant internal and external systems, stores, processing stages, integrations, controls, and trust boundaries? Does it exclude unrelated items? |
| Identity and reuse | Do the Components and Resources represent the real products or internal services? Did the agent reuse suitable definitions where they accurately describe an item? |
| Connections and Operations | Do arrows follow the real direction of data or action? Do Resource Operations match configuration, identity and access management evidence, or other authoritative records? |
| Classification and warnings | Do the types, classifications, and tags match actual behavior? Have you checked any agent-reported warnings or uncertain values against evidence? |
| Sensitive content | Does the model exclude credentials, secret-bearing values, personal data, and customer content? Check this even when automated validation reports no sensitive values. |
| Runtime and use-case truth | Does appropriate evidence or human attestation support the deployment behavior, runtime connectivity, business purpose, affected people, jurisdiction, and operational intent? |
Ask the agent to make any corrections the review identifies and record material uncertainty where the available evidence cannot support a definitive model. A knowledgeable reviewer then decides when the draft is ready to support its intended purpose.
Continue from a validated Blueprint
With a reviewed Blueprint in place, continue with the guide that matches your next task:
- System workspace and Blueprint — understand the resulting Blueprint and its review surfaces.
- Modeling Components — refine Component identity, reuse, classification, and connections.
- Modeling Resources + Operations — refine Resources, connection direction, and Resource Operations.
- API Overview & Reference — find exact integration, authentication, and machine-readable error details for technical implementation.
